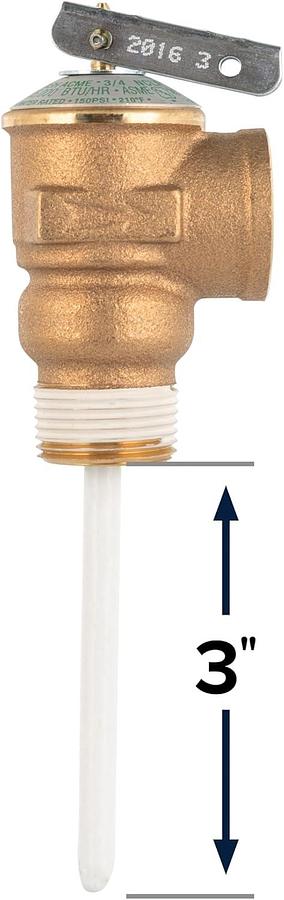

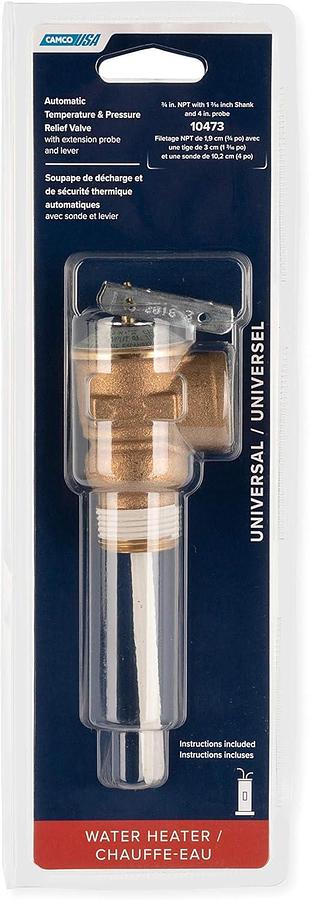

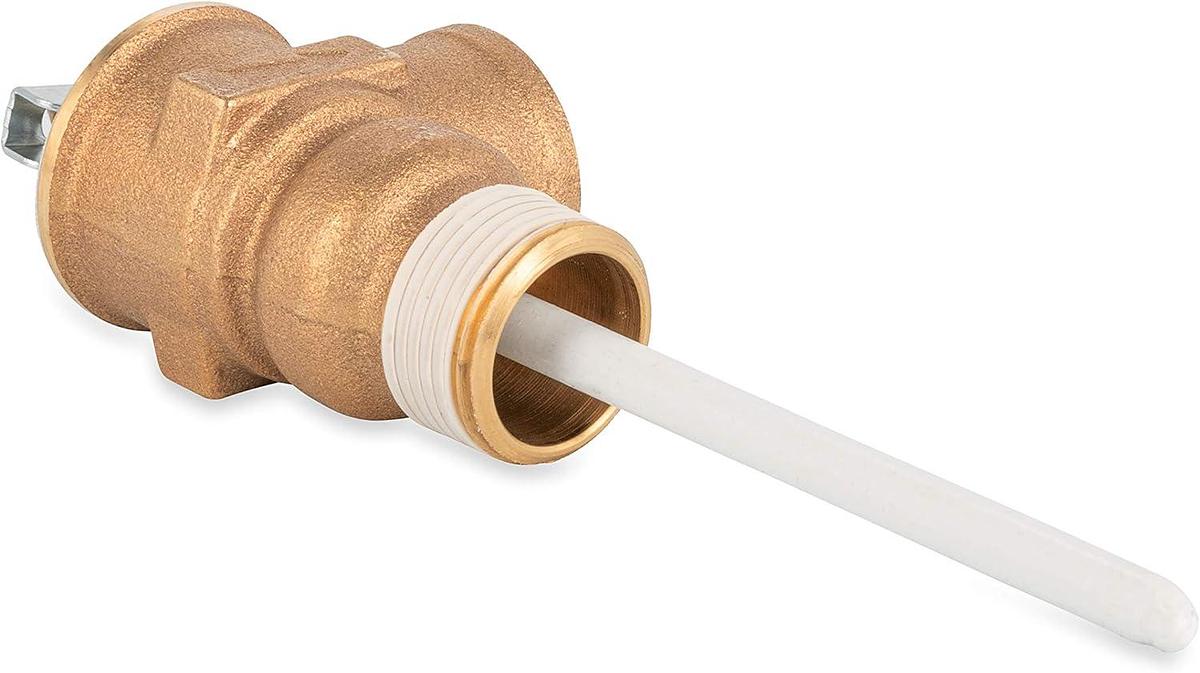

Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever | Features an All Brass Body with a Stainless Steel Pressure Spring | (10473)

Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever | Features an All Brass Body with a Stainless Steel Pressure Spring | (10473)
$34.99 (USD)
Location:Anthony, TX
or
Call 915-886-3500
Description
About this item
not_applicable
Imported
Provides Protection: Helps protect your RV or home water heater from excess temperature and water pressure
Connection: ¾-inch NPT connection allows hookup to RV and home water heaters; Dimensions: 1 3/16-inch shank; 4-inch probe
Features: Extension probe is epoxy-coated to prevent corrosion buildup; Construction: All brass body with stainless steel pressure spring
›
Camco's T&P Relief Valve helps protect your RV or home water heater from excess temperature and water pressure. It features a ¾-inch NPT connection, 1 3/16-inch shank, and 4-inch probe. The extension probe is epoxy-coated to prevent corrosion buildup. This product is constructed of an all-brass body with a stainless steel pressure spring. It is factory set to 150 PSI and 210 Fahrenheit. CSA certified to ANSI Z21.22.
Specifications
| Manufacturer | Camco |
| Condition | New |
| Material | Brass, Stainless Steel, Epoxy |
| Item dimensions L x W x H | 11.15 x 3.75 x 1.75 inches |
| Exterior Finish | Gold |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | MNPT |
| Maximum Operating Pressure | 150 Pound per Square Inch |
| Number of Ports | 1 |
| Outlet Connection Size | 0.75 Inches |
| Specification Met | Furnished with test lever |
| Valve Type | Pressure Relief Valve |
| Global Trade Identification Number | 00014717104739 |
| UPC | 014717104739 |
| Part Number | 10473 |
| Item Weight | 9 ounces |
| Product Dimensions | 11.15 x 3.75 x 1.75 inches |
| Item model number | 10473 |
| Is Discontinued By Manufacturer | No |
| Size | 1.50 L x 3.63 W x 11.38 H |
| Color | Silver/Pewter |
| Style | Brass body with stainless spring |
| Finish | Steel |
| Shape | shape |
| Power Source | not_applicable |
| Item Package Quantity | 1 |
| Mounting Type | Plate Mount |
| Included Components | (1) Camco Automatic Temperature and Pressure Relief Valve with Extension Probe and Lever |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | Limited 1 Year |
| ASIN | B000BQSINO |
| Date First Available | August 17, 2005 |
| Factory Setting | 150 PSI/210° Fahrenheit |
| Certification | CSA certified to ANSI Z21.22 |
| Document urll set | https://m.media-amazon.com/images/I/61sGC0jTYhS.pdf |
